1601 - Recognizing signed domains
Scenario
Your organization has recently adopted DNSSEC, a valuable security measure that aligns with the latest recommendations for DNS security. As part of your responsibilities, you have been assigned the task of testing the resolution of your organization's DNSSEC-enabled zones, ensuring they can be accessed by the public while being properly signed.
To refresh your DNSSEC knowledge, you decided to validate a selection of public domains. These domains include some that are DNSSEC signed and others that are not.
Estimate Completion Time
- 15 to 20 Minutes
Course References
- 0301: Information Security Fundamentals
- 1204: DNSSEC Fundamentals
Tasks
Task 1: Recognize Signed Domains
In this task, we determine whether or not a particular domain name has been signed by DNSSEC, through querying for the SOA record of the domain and requesting additional DNSSEC information manually.
Using the name server 8.8.8.8, determine which of the following domain names have been signed
Domain NameStatuswww.fbi.gov www.yahoo.com www.infoblox.com www.ietf.org www.hawaii.edu www.dnssec-failed.org - Which, if any, of the secure domains is bogus?
Solutions
Task 1: Recognize Signed Domains
Using dig with the name server 8.8.8.8, we determined that
Domain Name
StatusReasonwww.fbi.gov secure DNSSEC is implemented properly www.yahoo.com insecure DNSSEC is not implemented at all www.infoblox.com insecure DNSSEC is enabled on infoblox.com but not it's alias www.ietf.org secure DNSSEC is implemented properly www.hawaii.edu insecure DNSSEC is not implemented at all www.dnssec-failed.org bogus We cannot be sure just by doing this step You can follow the following syntax to validate each of the entries in the table:

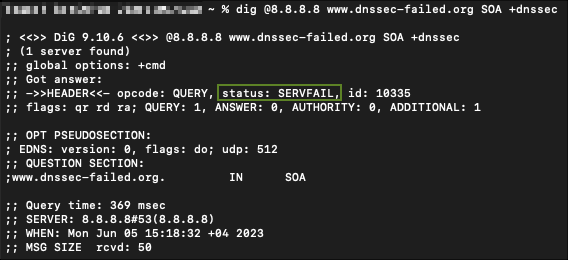

dig @8.8.8.8 [domain-name] SOA +dnssec +multi- www.dnssec-failed.org is bogus and we can validate that by the SERVFAIL error response message.
