2575 - Creating a Primary SubZone in BloxOne DDI

Cloud Services Portal (CSP) is now Infoblox Portal

In early September, Cloud Services Portal (CSP) became Infoblox Portal with a new look-and-feel, and a new URL (https://portal.infoblox.com). As a result of this change, the layout and organization of several menus have been updated.

Unfortunately, this means that our video courseware and lab guides no longer match the new user interface. However, we are currently in the process of updating them, and they should be ready soon.

In the meantime, we have some resources to help you navigate the new interface:

We apologize for any inconvenience this may cause and kindly ask for your patience as we work through this transition.

Scenario

The Sales department requires its own namespace in DNS. Our DNS design indicates that we are to organize the techblue.net domain by logical divisions, so we decide to add a subdomain (or subzone) for the sales department as a child zone of techblue.net, and we'll call it sales.techblue.net. This subzone should be authoritative for sales.techblue.net and the records should show that the same administrator of the parent domain is responsible for this child domain.

Estimated Completion Time

  • 5 to 10 minutes

Prerequisites

  • Administrative access to the CSP

  • Lab 2801: Deploying BloxOne Hosts

  • Lab 2570: Configuring DHCP Services in BloxOne DDI

  • Lab 2571: Creating DHCP Networks in BloxOne DDI

  • Lab 2573: Enabling and Configuring DNS Services

  • Lab 2574: Creating a Primary Zone in BloxOne DDI

Course References

  • 2159: BloxOne DDI Configuring DNS Services

  • 2153: BloxOne DDI Configuring DNS Zones

Tasks

  1. Creating primary subzone sales.techblue.net

  2. Validating the DNS zones and records from a client

Task 1: Creating primary subzone sales.techblue.net

A subzone sales.techblue.net will need to be created under the techblue.net domain in our BloxOne DDI environment, in the default view. This will be an authoritative zone so it will generate SOA and NS records automatically when we create it. The techblue.net administrator will maintain this subdomain, so we can use admin@techblue.net as the administrator email contact for the zone. We will use our two DNS service instances to host this zone, Techblue DNS service 1 and Techblue DNS service 2.

Task 2: Validating the DNS  subzone and records from a client

We've created the authoritative subzone sales.techblue.net and we added some needed resource records, but we should test that this all works as designed. Using our test client, verify the response from the DNS servers and the resource records.



Solutions

Task 1 Solution: Creating primary subzone sales.techblue.net

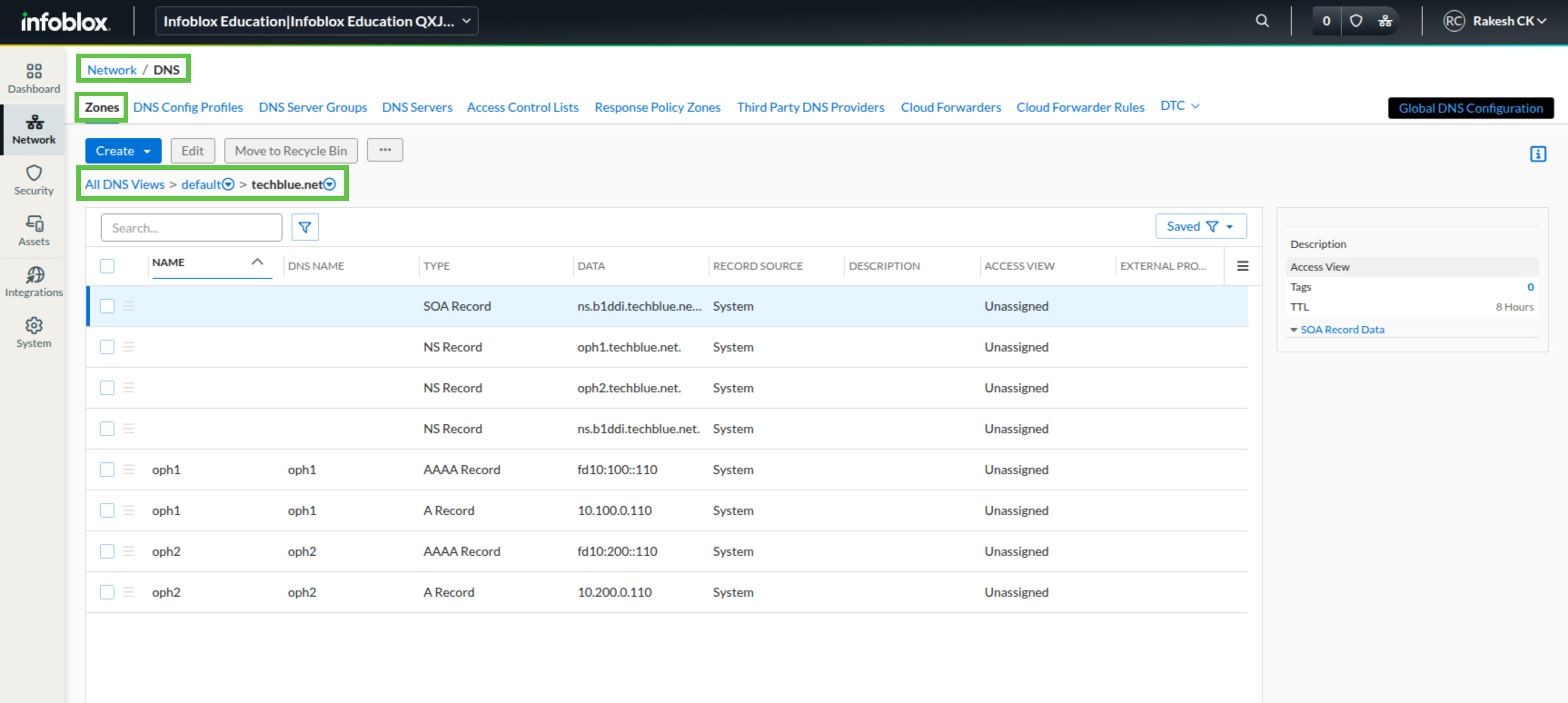

  1. With the CSP browser window, navigate to Manage → DNS

  2. Select the Zones tab

  3. Click on the default DNS View to go inside the view

  4. Click on the zone techblue.net to go into the zone

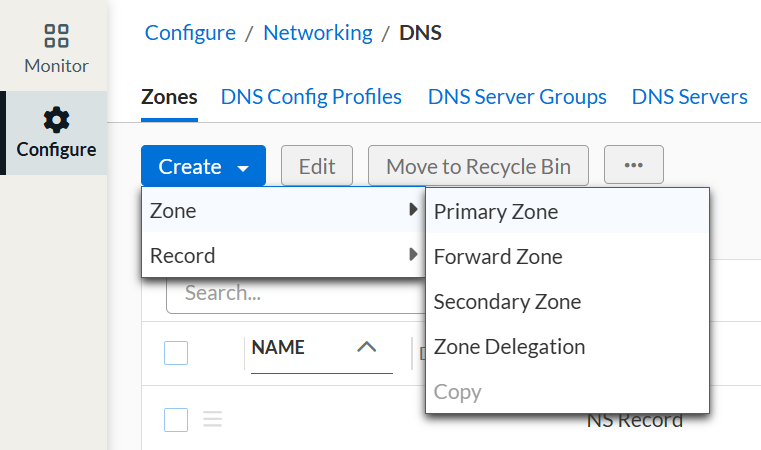

  5. Click the Create button, and from the drop-down select Zone and then Primary Zone

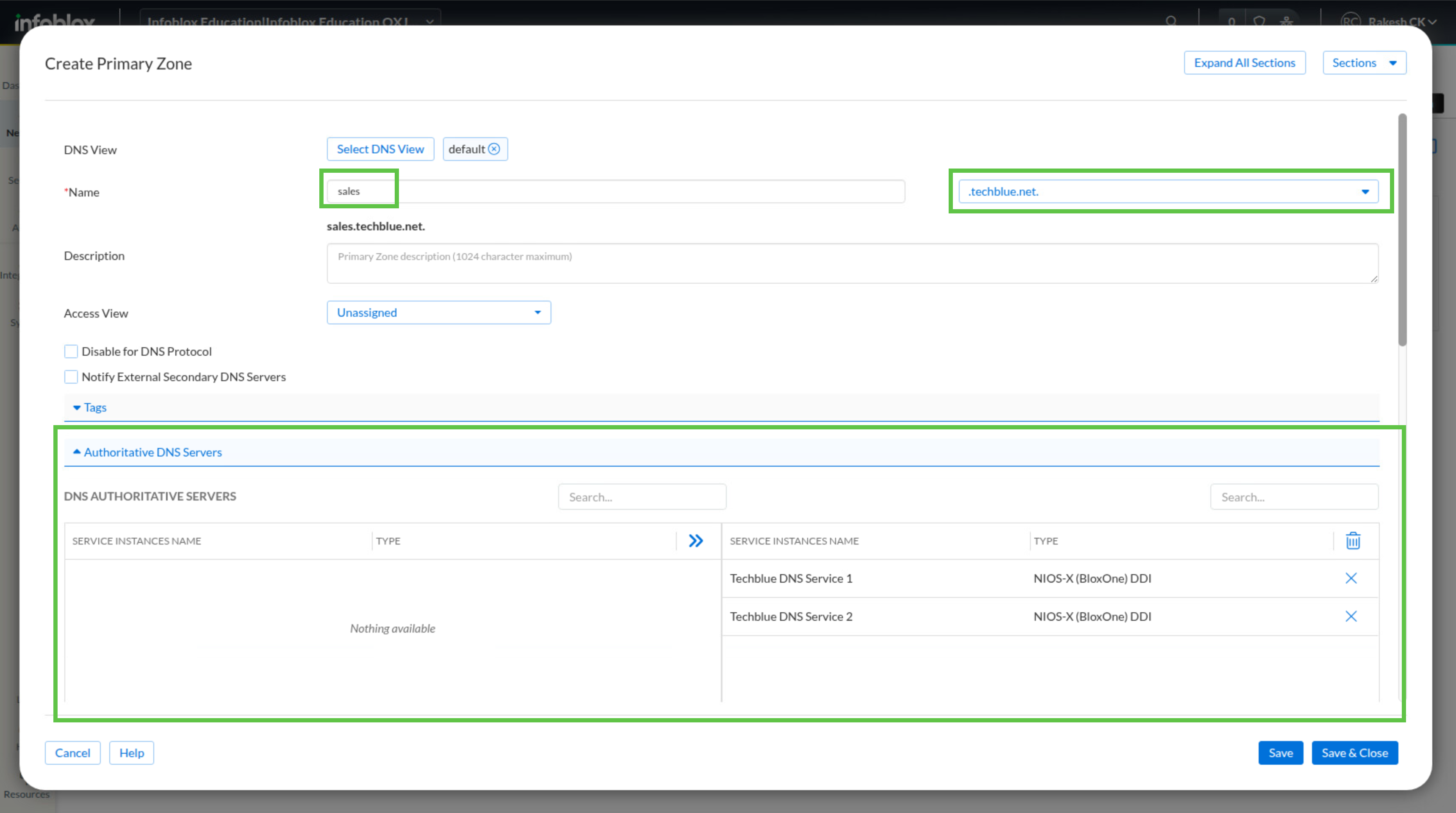

  6. Enter the zone Name: sales

  7. The FQDN below the Name field should show sales.techblue.net. (note the trailing dot representing the root domain).

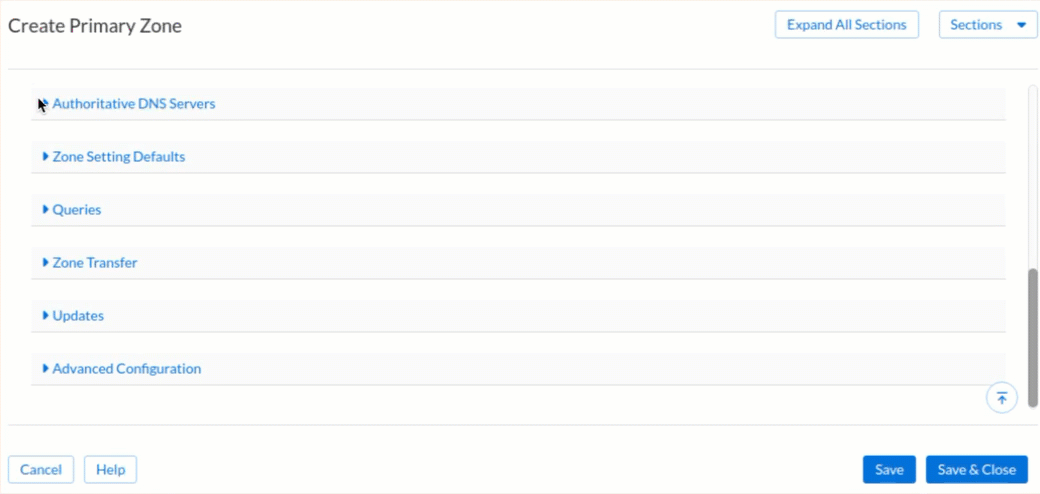

  8. Expand the Authoritative DNS Servers section

  9. Under DNS Authoritative Servers, click the arrow next to both of your DNS service instances to move them to the list of Authoritative DNS Servers

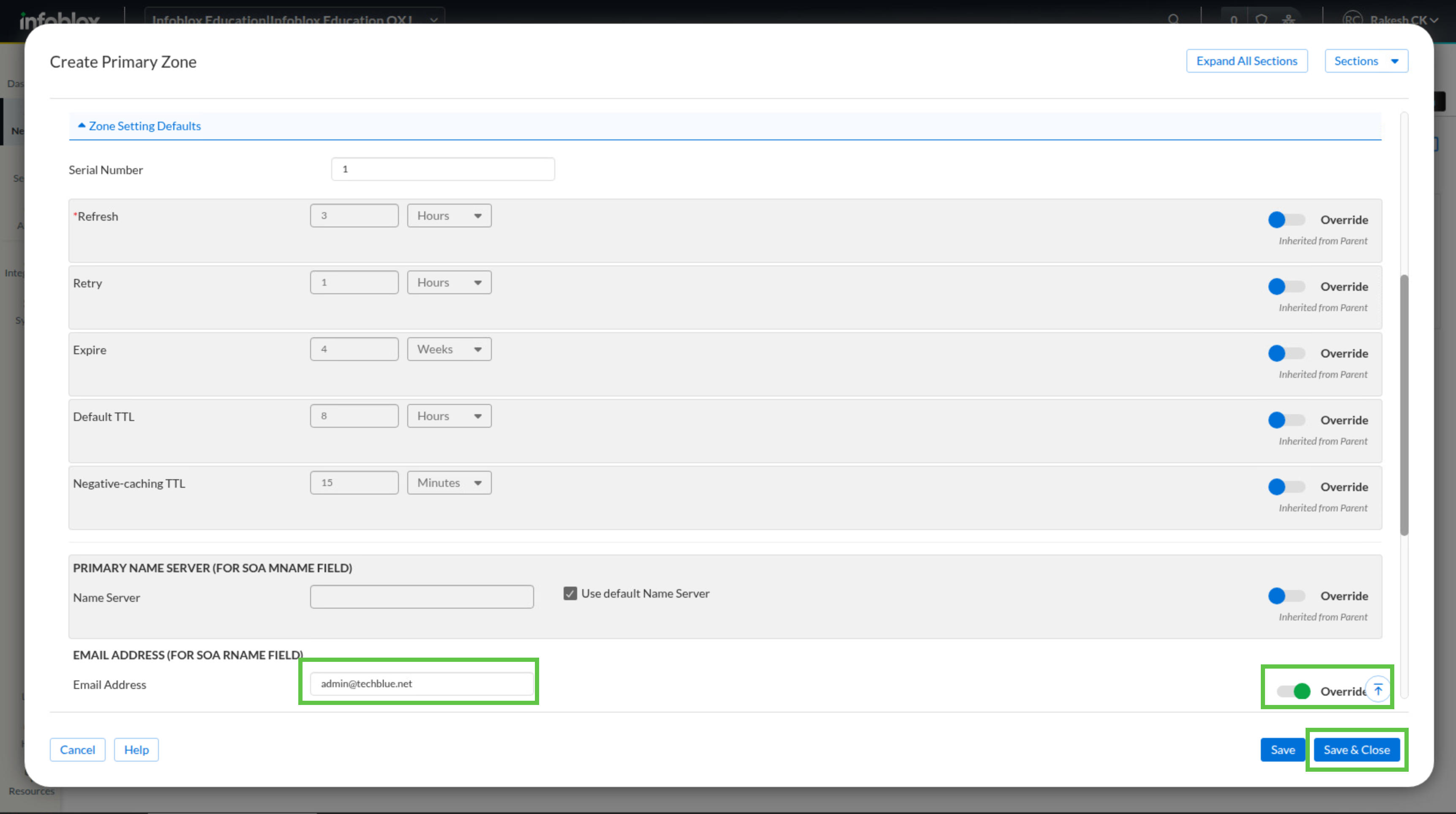

  10. Expand the Zone Setting Defaults section

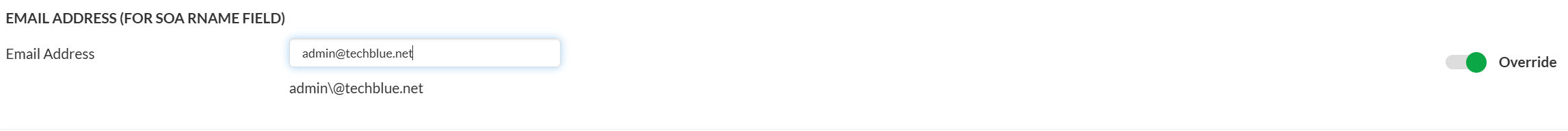

  11. Set the Email Address (For SOA RNAME Field) to: admin@techblue.net (you will need to click the Override toggle to override the default setting)

  12. Click Save & Close

Task 2: Validating the DNS zones and records from a client

  1. On testing-linux open a Terminal window

  2. Set the IP address as a fixed address with the command sudo set-network-static-bloxone to allow a route to the DNS server.

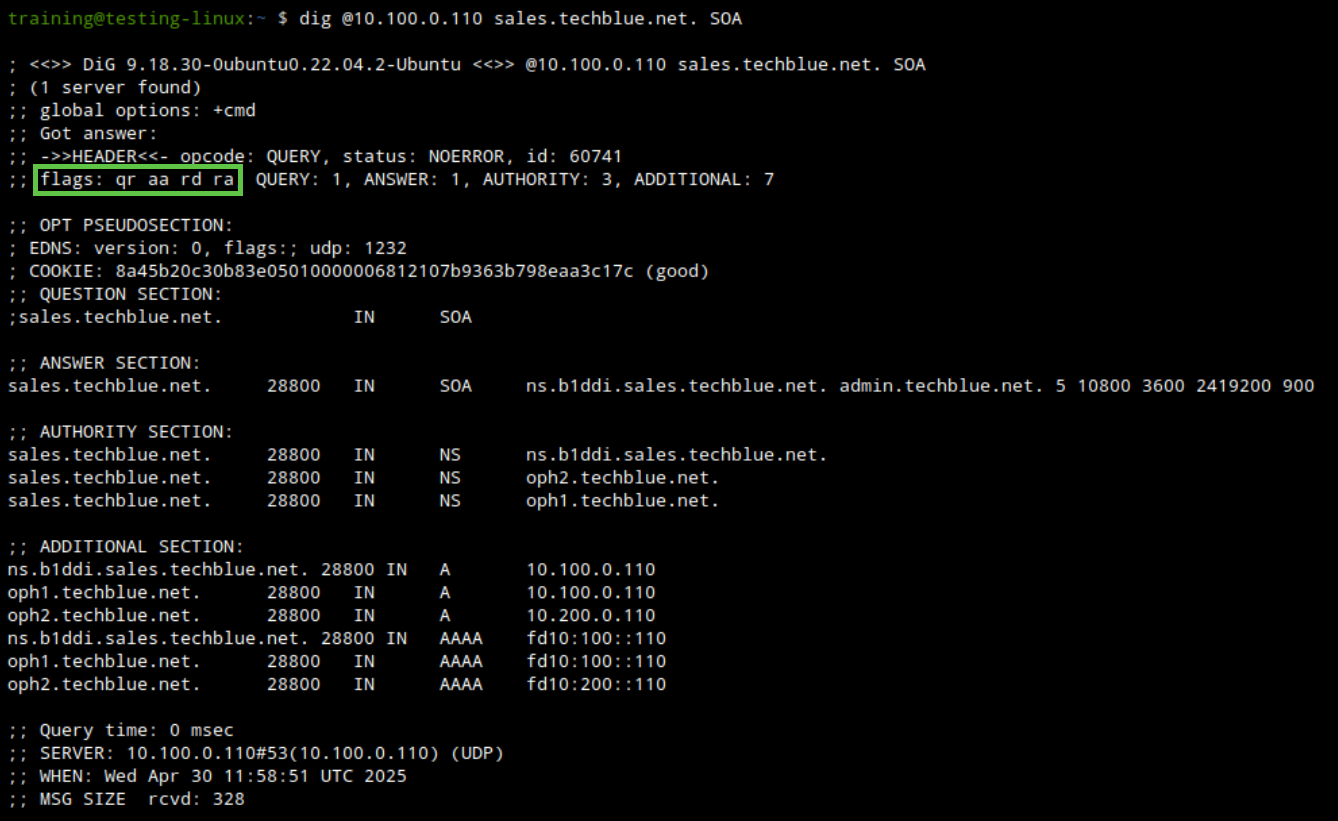

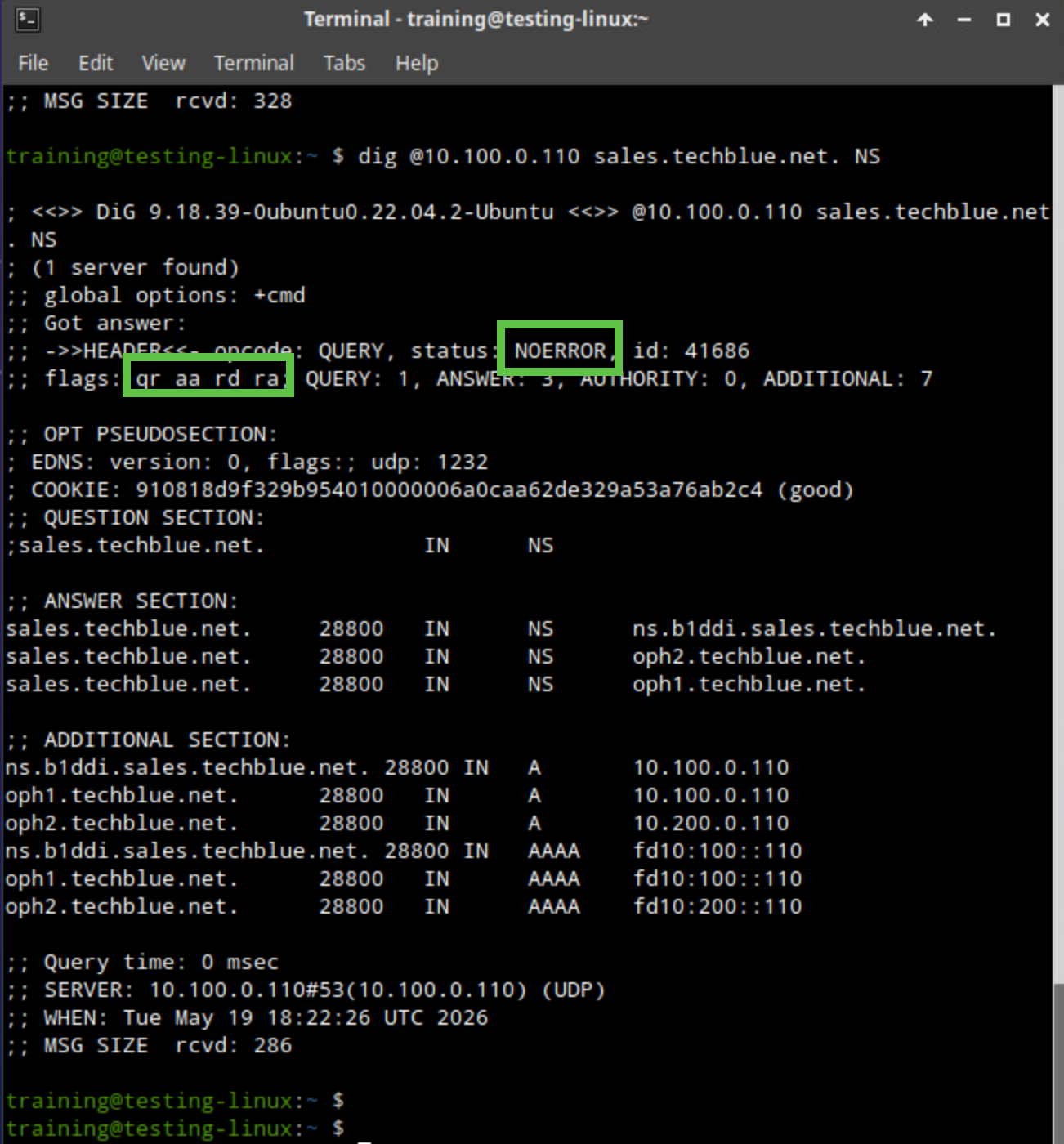

  3. Check the dig responses for the following queries. All queries should return Authoritative Answers (aa) with NOERROR:

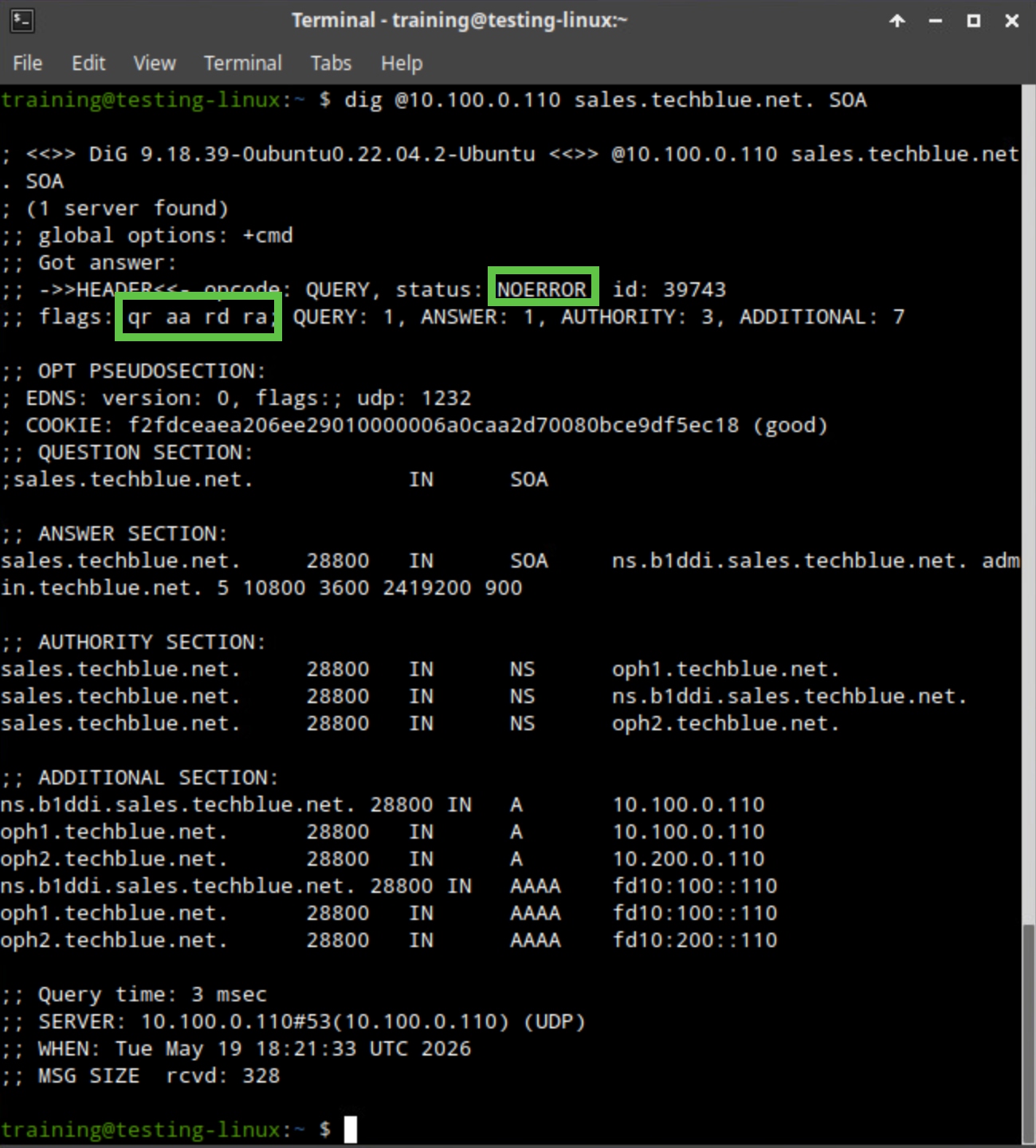

    dig @10.100.0.110 sales.techblue.net soa
